Radcliffe Tower, Radcliffe near Bury

dscn0618

Radcliffe Tower

After the Norman Conquest of England, Nicholas FitzGilbert de Tabois was given confiscated Saxon manor land in the present day Radcliffe area. He took the name ‘de Radclyffe’  (which means            of Radcliffe) and his descendants continued to live in the area for hundreds of years. They built a manorial house with a church alongside it on this naturally defendable site, which is protected on three sides by the River Irwell. The ‘red cliff’ on one side of the river gives Radcliffe its name.

The earliest record of a fortified Pele tower is from 1358. It is probably this ruined structure that remains today, but why was it built ? The 13oos was a time of on going war between England and Scotland. The Radcliffe family were participants, as Richard de Radcliffe fought with Edward I and his son Edward II in the Scottish Wars. In between these battles were devastating raids by both side into each other’s territory. This led to Pele Towers being constructed mainly in present day Cumbria and North Lancashire. Scottish raids could reach as far as South Lancashire, where Radcliffe is today, and so defendable manorial homes were an option for a wealthy family.

After the wars were over there followed two centuries  of unrest where the inhabitants of the North were at the mercy of families acting as armed bands of thugs, namely the Border Reivers. Again, an attack this far south was not as likely as it was for those living close to the border, but South Lancashire was still within striking range.

As a typical Pele tower, Radcliffe Tower was three stories high. Storage would be on the ground floor in a strong  stone vaulted room, and accommodation would be above.  A Pele was built to repel attackers and Radcliffe Tower incorporated the following : massively thick walls, some 1.5 metres wide; huge draw bars that could be pulled across the backs of the doors to stop them being forced open; narrow ground floor windows to prevent entry, and restricted access to the first floor (in the form of a removable ladder or stairs). This latter measure meant that if attackers  broke into the ground floor they could not easily get to the rooms above.

dscn0617

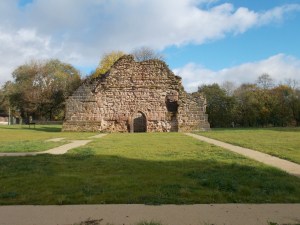

The footprint of the Medieval Great Hall

Radcliffe Tower would have been connected to a Medieval Great Hall, which would butt up directly against it. The Great Hall would be a timber frame building, consisting of a huge open room. At one end would be a large table where the family ate. At the other end would typically be doors leading to a buttery, pantry and kitchen. These would be blocked off from view by a large moveable wooden screen (an example of which can be seen at Rufford Old Hall).  The footprint of the Great Hall has been laid out in the grass on the site today, so you can get a feel for its size. For an idea of what both the outside and the inside would have look like, visit nearby  Smithills Hall at Bolton (see here).        It was built in the same era  and its Great Hall still survives to this day. It was also owned by the de Radcliffe family.

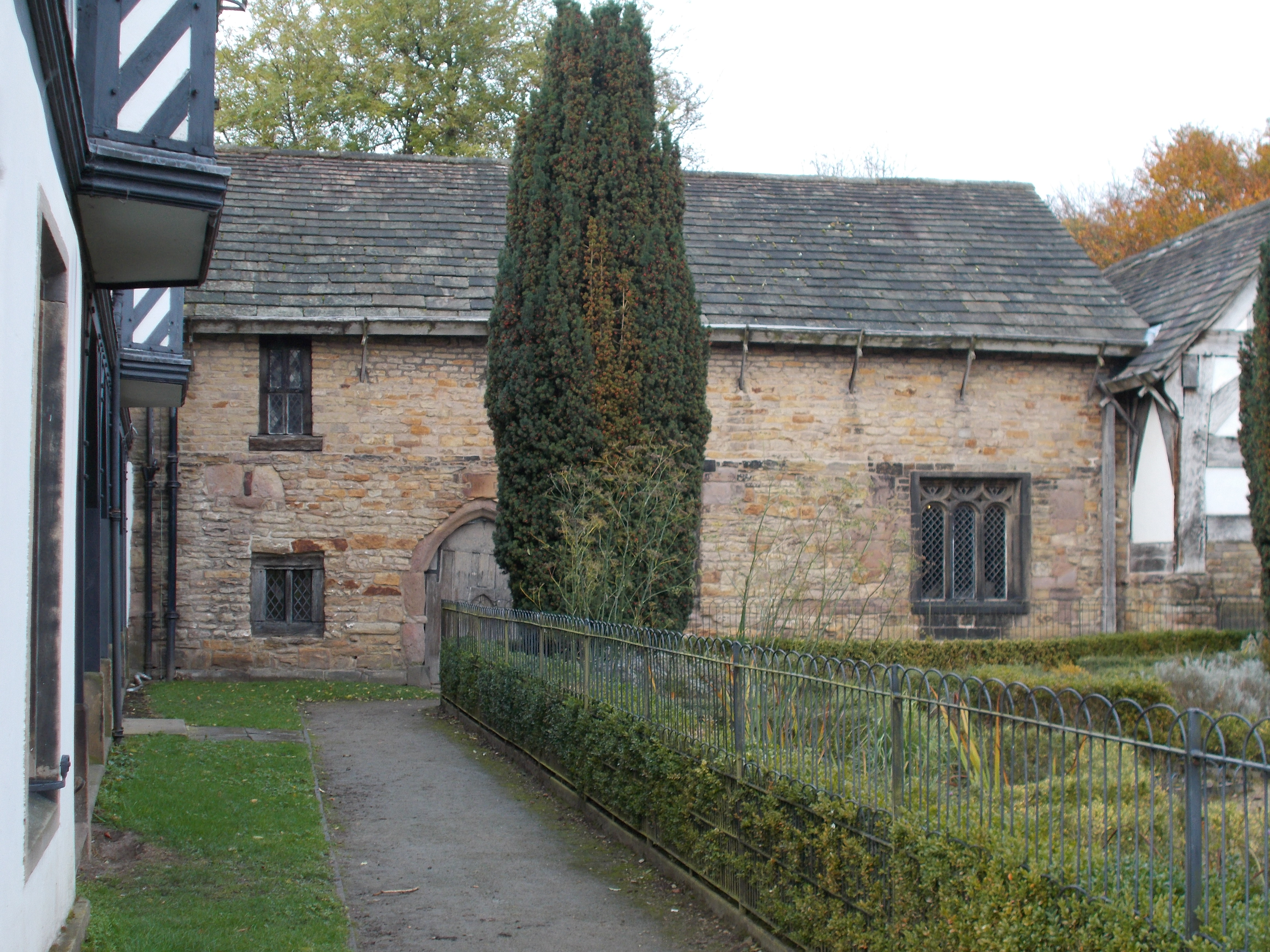

Smithills Medieval Great Hall, in Bolton

Smithills Medieval Great Hall, in Bolton

On 15th August  1403 King Henry IV gave James de Radcliffe a ‘licence to crenellate’ which meant permission to fortify his house. James had fought in the Battle of Shrewsbury and this could have been his reward for doing so. Seeing how he already had a Pele Tower, this was probably a permission for further fortified building work. Indeed the licence was for a new Great Hall with  two thick walled stone wings, all enclosed by an outer wall. It appears that the second stone wing was never built, but the hall and tower were probably remodelled at this time.

In 1517 the manor of Radcliffe passed to a more distant branch of the family, that of Robert Radcliffe Lord Fitzwalter who later became the Earl of Sussex. His descendants sold Radcliffe Manor in 1561 to the local Assheton family who lived at Middleton Hall (near Rochdale). The Asshetons did not move in, but leased the hall and its lands to tenant farmers. In 1765 the Earl of Wilton from Heaton Hall near Prestwich took ownership and it would remain with the Wilton family until the 1950s. Again it continued to be let to tenants and not occupied by the family themselves. By  the early 1800s much of its former grandeur was gone and people only continued to live in the small west wing. The Great Hall was converted to a barn and the Pele tower began to be used as farm buildings. This saw  the huge ground floor fireplaces being knocked through on the south and east walls, probably to give access to either farm carts or animals.

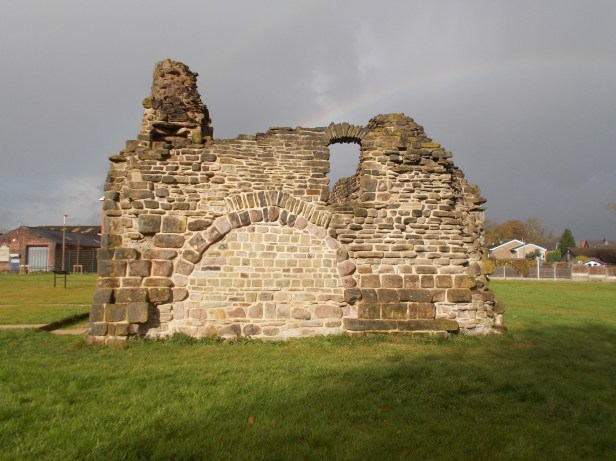

South wall of Radcliffe Tower, showing one of the huge fireplaces

South wall of Radcliffe Tower, showing one of the huge fireplaces

By 1840 the Great Hall and west wing had been demolished as both were in a poor state of repair. Some of the stone from their foundations was used to make cottages close by.  A new farmhouse was built to the north of where the Great Hall had stood. The Pele tower was spared, but it continued to be used as a farm building.

Throughout the twentieth century the site around the tower saw huge change. Although the tower was scheduled in 1925, the land around it was not protected and in the 1940s gravel quarrying began to the south of the tower.  By the 1960s  the farmhouse and cottages  had been demolished.  Starting in the 1970s the quarry was used as a landfill, with huge trucks rumbling right past Radcliffe Tower. It was in a very sorry state, being protected only by a fence around it.

Gradually, the fortunes of the tower begun to turn and in 1988 Bury Council took over ownership. Conservation and stabilization of the structure followed- which included blocking the fireplace arches and two windows. The scheduling of the monument was extended to include the land that the Great Hall had stood on. By 2007 the landfill was gone, and Bury Council acquired the land surrounding the tower.

dscn0651

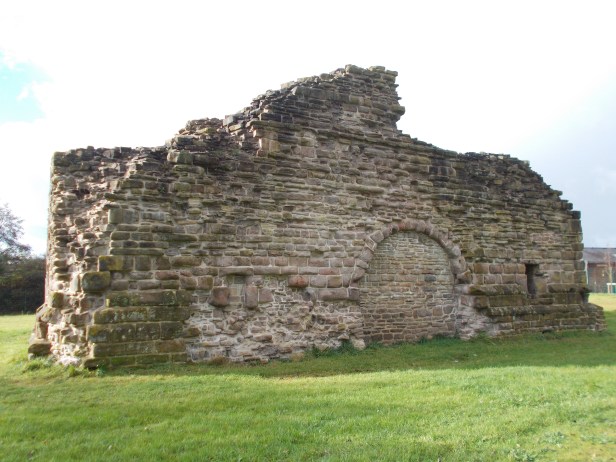

East wall of Radcliffe tower with another fireplace blocked up

From 2012 there  followed a series of archaeological excavations. Many of these involved the local community, as well as Centre for Applied Archaeology at the University of Salford. In 2013 the Heritage Lottey Fund gave £267,000 to the Radcliffe Heritage Project to investigate the site and publicise their finds. Not only were the tower and hall site investigated, but also the later farm and cottages that were built nearby.  Finds revealed that the Great Hall would have had a floor made from glazed tiles. Green ridge roof tiles were also discovered, which would have topped the thatch of the hall. Pottery included 15th century Cistercian ware which is  made of a red clay with a brown iron glaze. This included drinking pots, some with one handle and some with two, as well as storage jars.

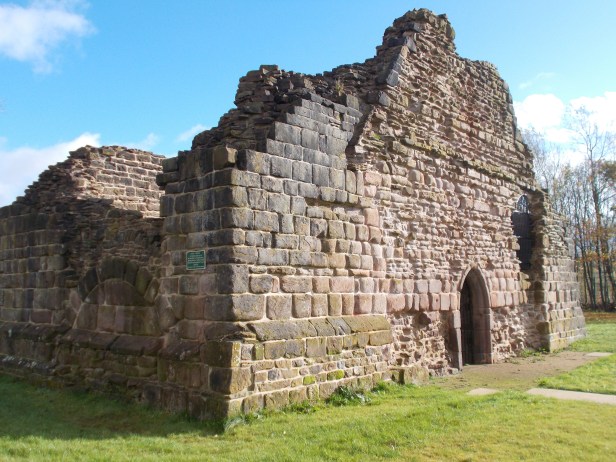

The diagonal roof line shows where the Great Hall would have met the tower. Note also the finer brickwork which would have had plaster on it for the inside of the hall

The diagonal roof line shows where the Great Hall would have met the tower. Note also the finer brickwork which would have had plaster on it for the inside of the hall

Today the medieval fabric of the tower has been professionally conserved and restored, and the area around it landscaped. Interpretation notices tell you all about the history of the site. If you examine the ground in front of the large doorway, you can see where the Great Hall would have butted up against Radcliffe Tower, as the archaeologists have helpfully left its footprint in the grass.  If you look at the photograph on the left (click to enlarge it)- the diagonal roof line of the hall can be seen, and smaller irregular stonework of the interior wall which would have been plastered can also be made out. The three blocked large fireplaces are very obvious on three of the sides of the tower, created when the bottom floor was converted from a storage room to a kitchen.

Today Radcliffe  Tower has been incorporated into Close Park which also has a heritage trail. An excellent website has been set up (the Radcliffe Manor Website- see link below) to give lots of details and pictures of the site and you can view the trail and more history by visiting it. The Tower and Park are supported by two groups: Friends of Radcliffe Manor and Friends of Close Park, and their links are also given below. It’s a remarkable journey the tower has been on, and it is now a fantastic heritage destination for Radcliffe and the whole of the Lancashire region.

Access

This site is free to visit and  is open access through Close Park or St Mary’s Church in daylight hours. These are the only gates that are unlocked- there is a large fence around the perimeter of the site and there is no access through any of the other gates.

Just a short drive away Bury Castle ruins

Links

Radcliffe Manor Website http://www.radcliffeheritage.co.uk click here

Friends of Radcliffe Manor group click here

Friends of Close Park group click here

Bury Archaelogy dug the site in the 1970s, keeping alive interest in the tower. See their website here

References

Radcliffe Manor: A Medieval Tower in Context, Greater Manchester’s Past Revealed: 16, Mike Nevell, Vicky Nash and Sarah Cattell, (2016) CfAA, Salford University

Radcliffe Tower: An Introduction to the Scheduled Monument, Peter Arrowsmith, (1995), Bury MBC (with the University of Manchester Archaeological Unit)
